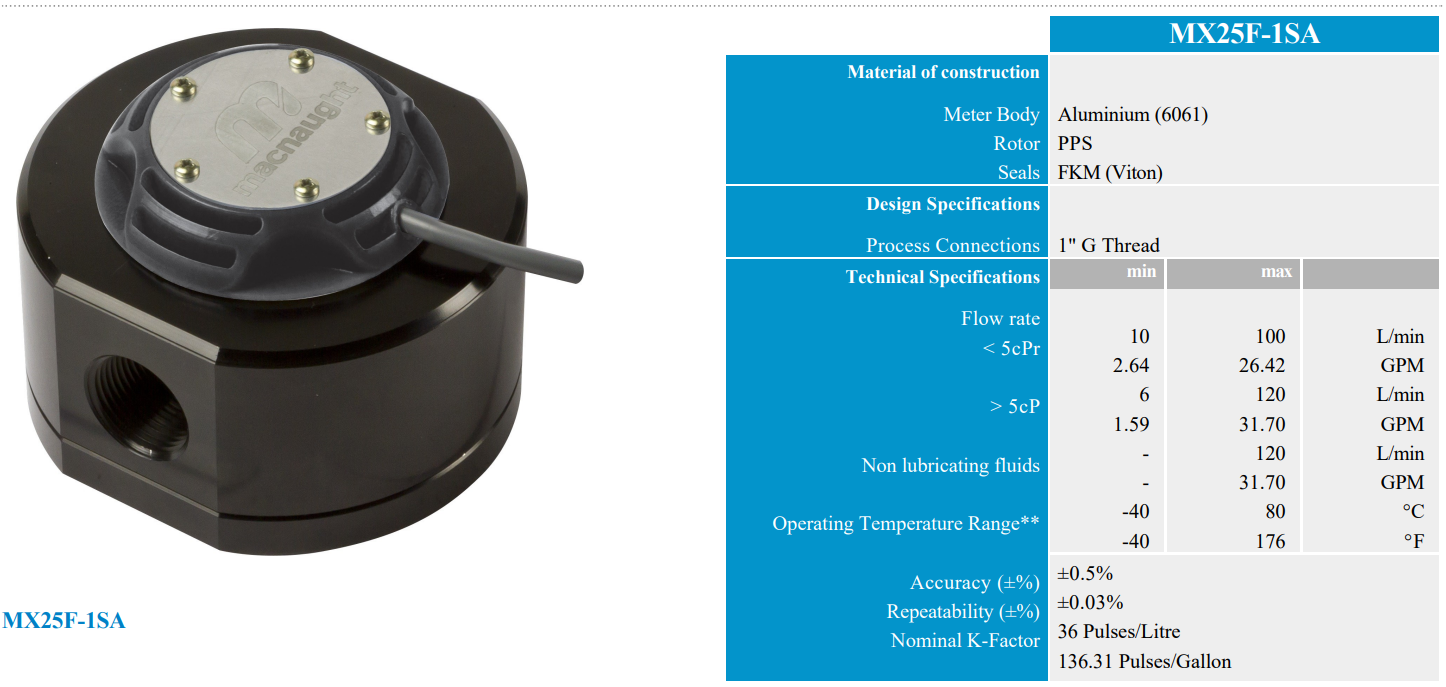

MX25F-1SA
The MX Series 1" DIGITAL FLOW METER are suitable for flows between 6 - 120 L/min (1.59 - 31.70 GPM), providing highly accurate flow measurement performance.
The MX Series offers ±0.5% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.
Key features include:
Aluminium (6061) construction
FKM (Viton) seals
Maximum flow rate 120 L/min / 31.70 GPM
Accuracy of ±0.5% of reading
Exceptional repeatability of ±0.03%
Temperature up to 80 °C / 176 °F
1 point factory calibration as standard, with additional points upon request
